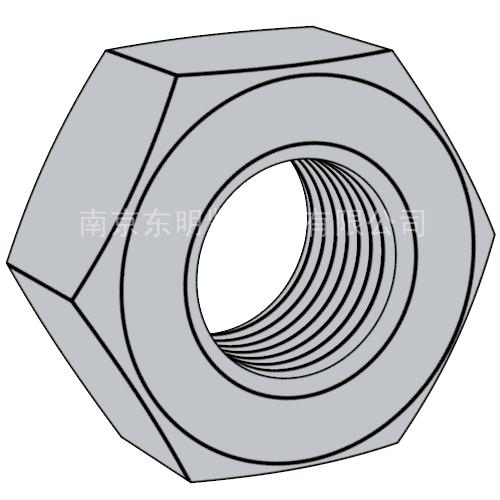

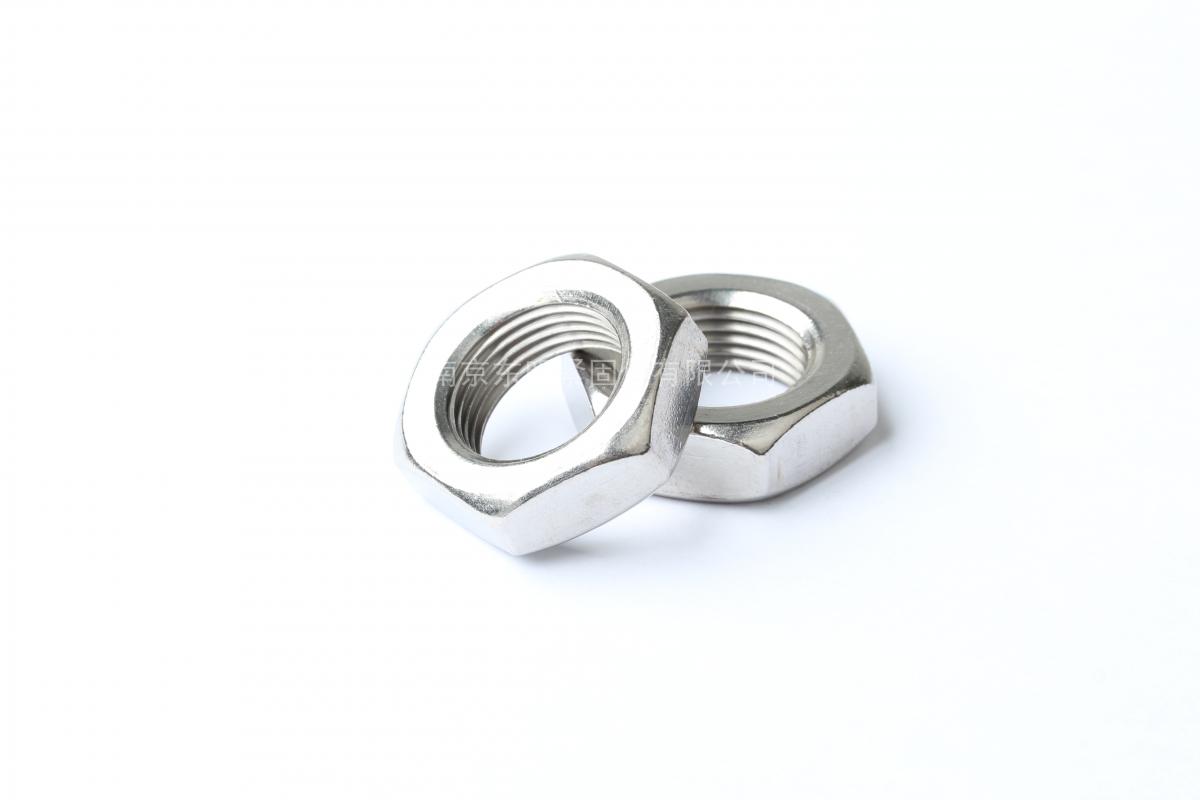

GB/T 6172.1 - 2016 六角薄螺母
工艺：
详细信息
GB/T 6172.1 - 2016 六角薄螺母 材质、等级：4级、8级、10级、12级、A2-70、A4-70 、A4-80等
表面处理：镀普通蓝白锌、普通彩锌、热镀锌、环保彩锌、环保蓝白锌、环保达克罗等
盐雾时间：可做72H、96H、120H、300H、360H、720H等高盐雾处理
电话咨询：400-086-0001 025-86183701-8026
徐小姐
邮件咨询：dm8026@18luosi.com
QQ咨询：2850588428

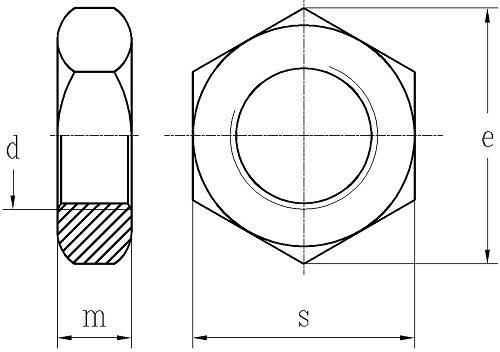

| 公称直径 | M1.6 | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | M56 | (M60) | M64 | |
| P | 螺距 | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6 |
| k | 最大值 | 1 | 1.2 | 1.6 | 1.8 | 2 | 2.2 | 2.7 | 3.2 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13.5 | 15 | 16.5 | 18 | 19.5 | 21 | 22.5 | 24 | 26 | 28 | 30 | 32 |
| 最小值 | 0.75 | 0.95 | 1.35 | 1.55 | 1.75 | 1.95 | 2.45 | 2.9 | 3.7 | 4.7 | 5.7 | 6.42 | 7.42 | 8.42 | 9.1 | 9.9 | 10.9 | 12.4 | 13.9 | 15.4 | 16.9 | 18.2 | 19.7 | 21.2 | 22.7 | 24.7 | 26.7 | 28.7 | 30.4 | |
| s | 最大值=公称 | 3.2 | 4 | 5 | 5.5 | 6 | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 |
| 最小值 | 3.02 | 3.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 | |
| e | 最小值 | 3.41 | 4.32 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | 93.56 | 99.21 | 104.86 |
| 千件重(钢制)≈kg | 0.036 | 0.073 | 0.164 | 0.217 | 0.282 | 0.432 | 0.662 | 1.29 | 2.72 | 5.21 | 7.51 | 11.48 | 17.18 | 23.59 | 31.43 | 44.85 | 54.26 | 81.19 | 117.4 | 151.1 | 202.2 | 260.9 | 325.2 | 408.6 | 509.4 | 618.9 | 739.2 | 876.9 | 1027 | |
