DIN933 外六角全牙螺栓

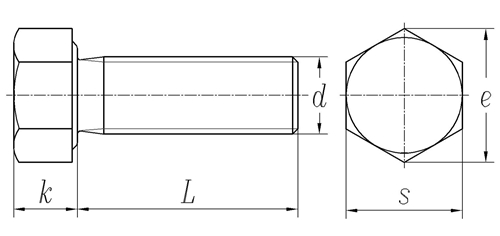

标准：DIN 933-1987 全螺纹六角头螺栓 A级和B级
工艺：冷镦
详细信息
DIN933 外六角全牙螺栓 材质、等级：8.8级、10.9级、12.9级 、A2-70、A4-70 、A4-80等
表面处理：镀普通蓝白锌、普通彩锌、热镀锌、环保彩锌、环保蓝白锌、环保达克罗等
盐雾时间：可做72H、96H、120H、300H、360H、720H等高盐雾处理
电话咨询：400-086-0001 025-86183701-8026
徐小姐
邮件咨询：dm8026@18luosi.com
QQ咨询：2850588428
| Nominal Diameter | M1.6 | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | (M7) | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | |
| P | Pitch | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
| k | Nominal Size | 1.1 | 1.4 | 1.7 | 2 | 2.4 | 2.8 | 3.5 | 4 | 4.8 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | 14 | 15 | 17 | 18.7 | 21 | 22.5 | 25 | 26 | 28 | 30 | 33 |
| Grade A min | 0.98 | 1.28 | 1.58 | 1.88 | 2.28 | 2.68 | 3.35 | 3.85 | 4.65 | 5.15 | 6.22 | 7.32 | 8.62 | 9.82 | 11.28 | 12.28 | 13.78 | 14.78 | / | / | / | / | / | / | / | / | / | |
| Grade A max | 1.22 | 1.52 | 1.82 | 2.12 | 2.52 | 2.92 | 3.65 | 4.15 | 4.95 | 5.45 | 6.56 | 7.68 | 8.98 | 10.18 | 11.72 | 12.72 | 14.22 | 15.22 | / | / | / | / | / | / | / | / | / | |
| Grade B min | / | / | / | / | / | 2.6 | 3.26 | 3.76 | 4.56 | 5.06 | 6.11 | 7.21 | 8.51 | 9.71 | 11.15 | 12.15 | 13.65 | 14.65 | 16.65 | 18.28 | 20.58 | 22.08 | 24.58 | 25.58 | 27.58 | 29.58 | 32.5 | |
| Grade B max | / | / | / | / | / | 3 | 3.74 | 4.24 | 5.04 | 5.54 | 6.69 | 7.79 | 9.09 | 10.29 | 11.85 | 12.85 | 14.35 | 15.35 | 17.35 | 19.12 | 21.42 | 22.92 | 25.42 | 26.42 | 28.42 | 30.42 | 33.5 | |
| s | max=nominal size | 3.2 | 4 | 5 | 5.5 | 6 | 7 | 8 | 10 | 11 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| Grade A min | 3.02 | 3.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 | 26.67 | 29.67 | 31.61 | 35.38 | / | / | / | / | / | / | / | / | / | |
| Grade B min | / | / | / | / | / | 6.64 | 7.64 | 9.64 | 10.57 | 12.57 | 16.57 | 18.48 | 21.16 | 23.16 | 26.15 | 29.16 | 31 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | |
| e | Grade A min | 3.41 | 4.32 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 | 18.9 | 21.1 | 24.49 | 26.75 | 30.14 | 33.53 | 35.72 | 39.98 | / | / | / | / | / | / | / | / | / |
| Grade B min | / | / | / | / | / | 7.5 | 8.63 | 10.89 | 11.94 | 14.2 | 18.72 | 20.88 | 23.91 | 26.17 | 29.56 | 32.95 | 35.03 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | |
| ①,This standard specifies requirements for M1,6 to M52 hexagon head screws threaded up to the head, assigned to product grade A, for sizes up to M24 and lengths not exceeding 10d or 150 mm, and to product grade B for sizes greater than M24 or lengths exceeding 10 d or 150 mm. | ||||||||||||||||||||||||||||
| ②,For thread sizes not greater than M4,also permitted without chamfered end | ||||||||||||||||||||||||||||
